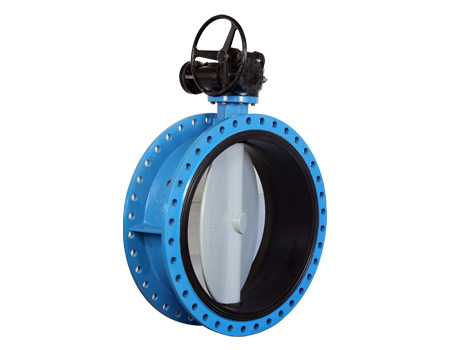

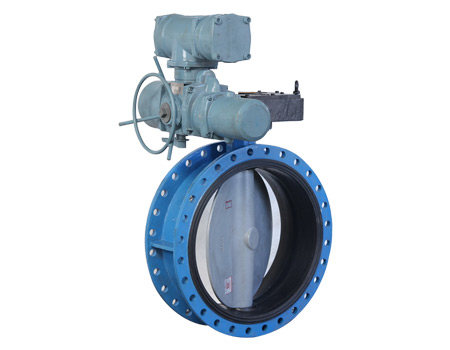

Butterfly Valve

High Performance butterfly valve

Application	Isolation
Features / Benefit	Semi Lug Type Design Top Mounting Pad as per ISO 5211 Unique Stem retention design to provide blow out proof stem & easy assembly & disassembly of valves Heavy Duty square grooved seat design with moulded O ring seals to act as flange gasket Self energizing seating design Through flow disc design for large size Butterfly Valves
Ansi Class / Rating	150# Class;
Design Standard	API 609 CAT A
Testing Standard	API 598
F to F Standard	API 609 CAT A
Size	50 mm to 400 mm
Materials	Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seat : PTFE
Ends	Wafer End
Operation	Mannual, Pneumatic, Electric
